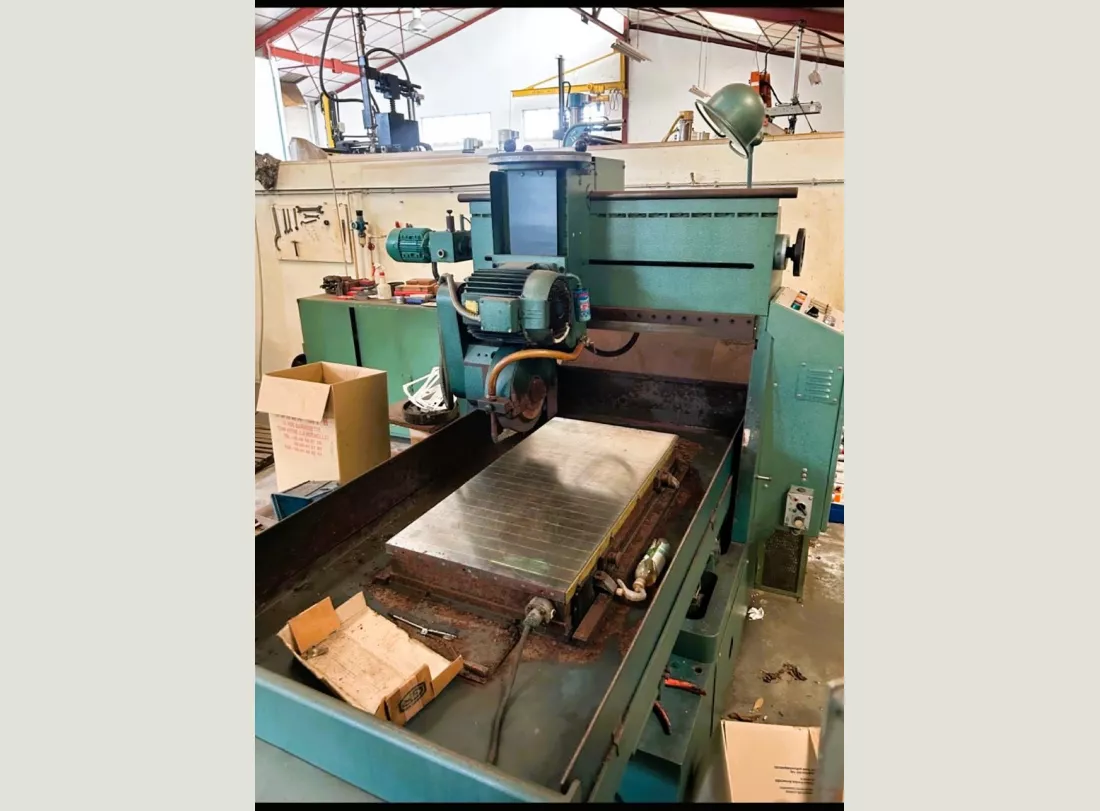

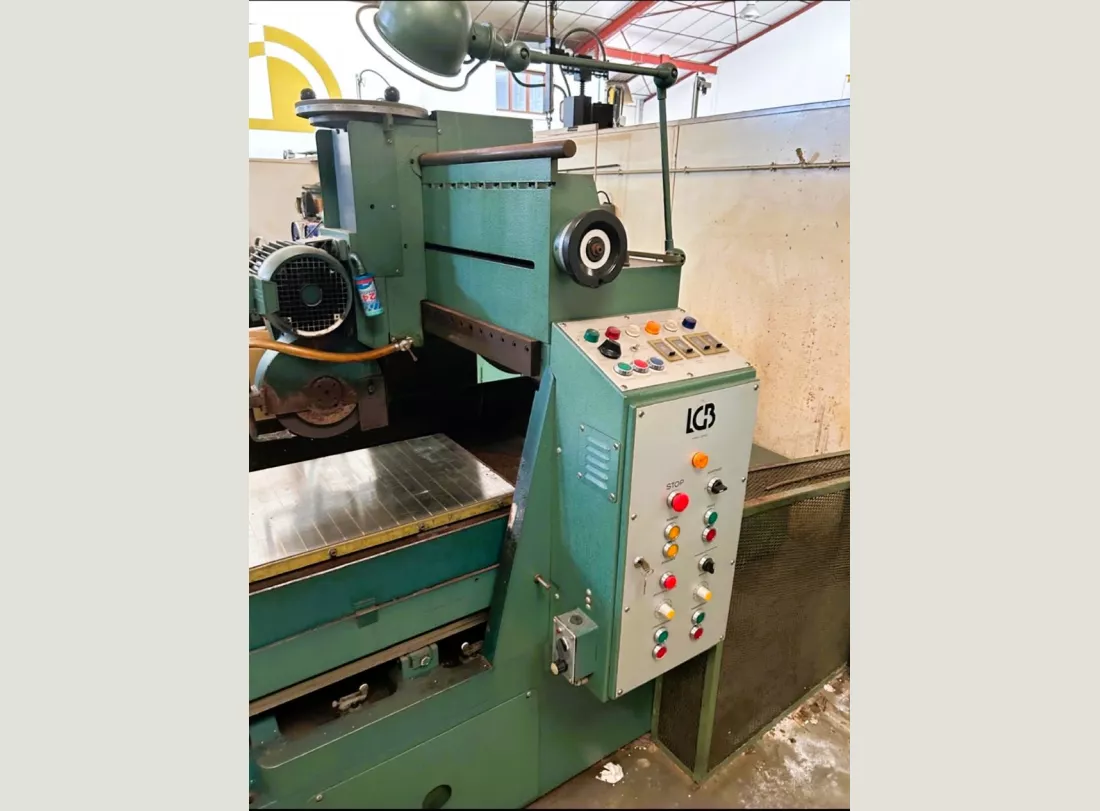

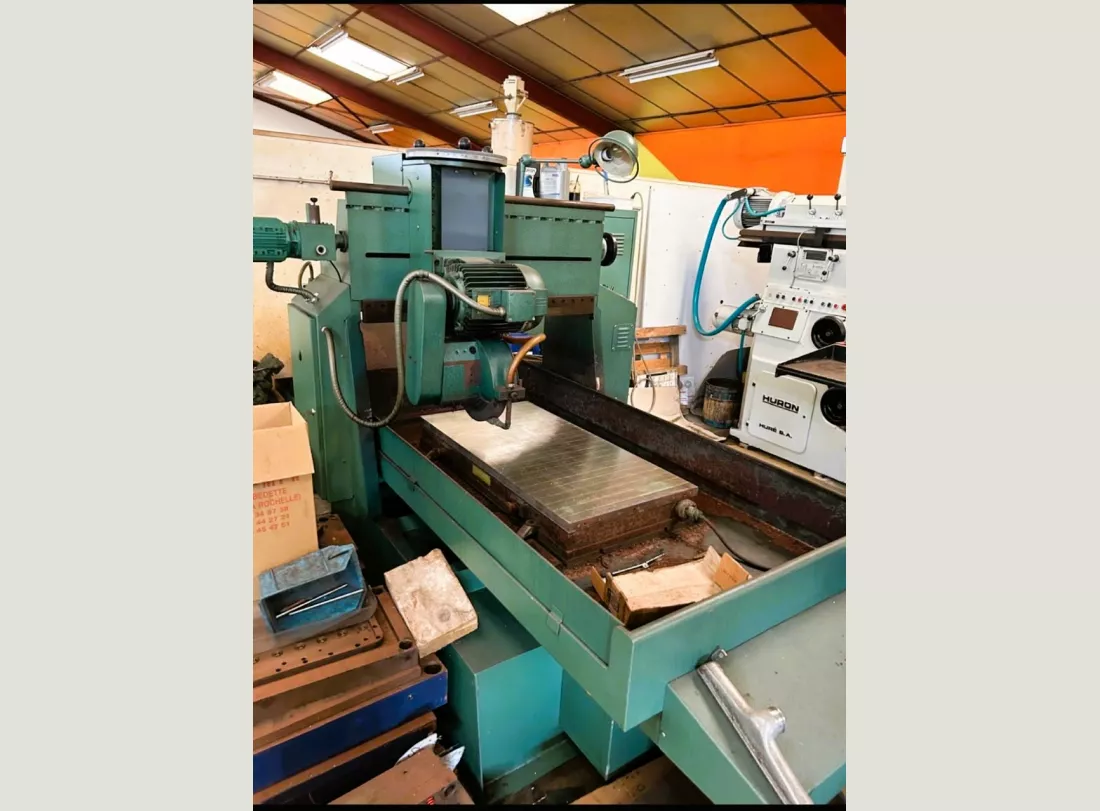

Grinding Machine LGB R900

(4053)

Brand : LGB

Model R900

Maximum grindable length 900mm

Maximum grindable width 610mm

Maximum table travel 940mm

Maximum cross-slide travel 560mm

Wheel holder stroke 300 mm

Clearance between table and wheel 400 mm

Useful table area 750 x 400 mm

Number of T-slots on the table 2

Variable table speed 2 to 22 m/min

Cross-slide feed 0 to 15 mm

Longitudinal stroke 0 to 940 mm

Transverse stroke 0 to 560 mm

Spindle power 4 cv

Maximum grinding wheel dimensi 250 x 50 x 76.2

Grinding wheel rotational speed 2100 rpm

Coolant pump flow rate 22 l/min

Weight 1,980 kg

Overall dimensions 3,050 x 1,450 x 1,700

Grinding Machine LGB R900

Contact me (on that machine)
