The opportunities Mechanics › Grinding machines
Grinding machines

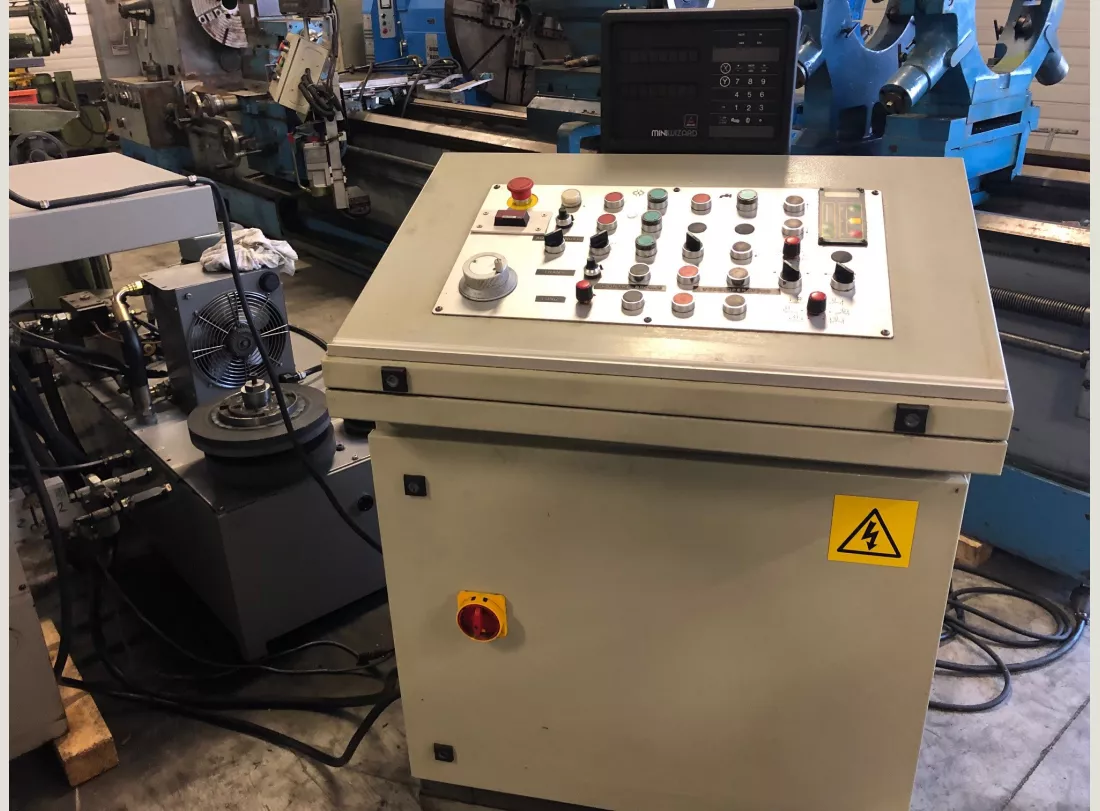

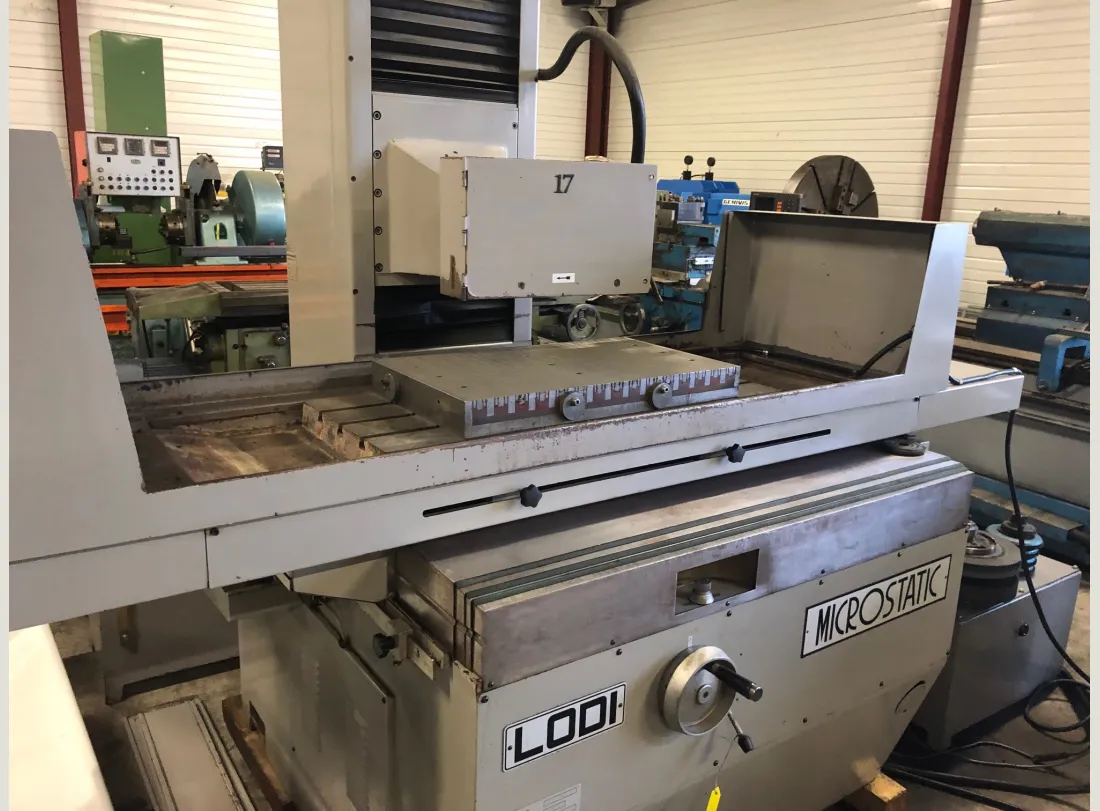

Surface Grinding machine LODI
(3119)
Brand LODI
Type T70344
Stroke 700

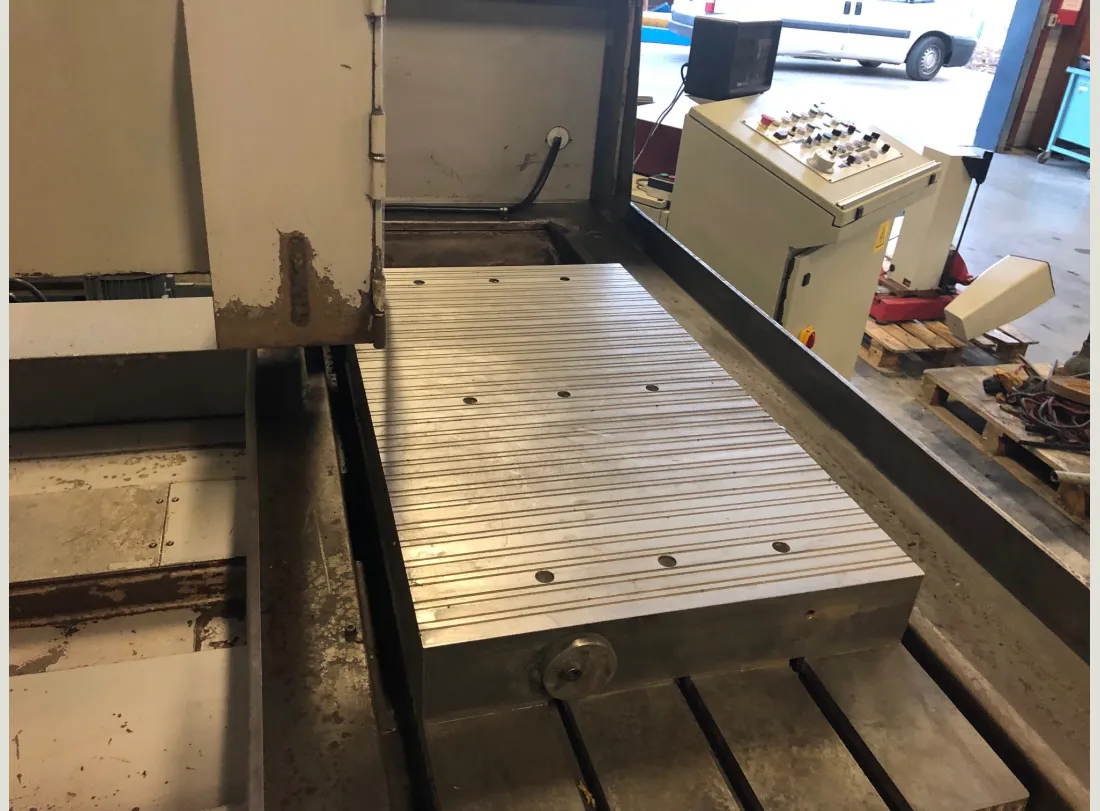

Dimension of magnetic plate :
700 x 400 mm
Table size :
1200 x 350 mm
Max. grinding length :
1000 mm
Max. grinding width :
400 mm
Distance from table to spindle axis :
575 mm
Transverse :
400 mm
Longitudinal hydraulic :
700 mm
Variable transverse feed rates :
0-6 m/min.
Variable longitudinal feed rates :
1-30 m/min.
Rapid traverse :
1000 mm/min.
Auto incrementing of spindle downfeed when reversing long or trans. 0001/0008/0.0025/0.02 mm
Spindle speed :
1400 rpm.
Spindle power :
10 HP

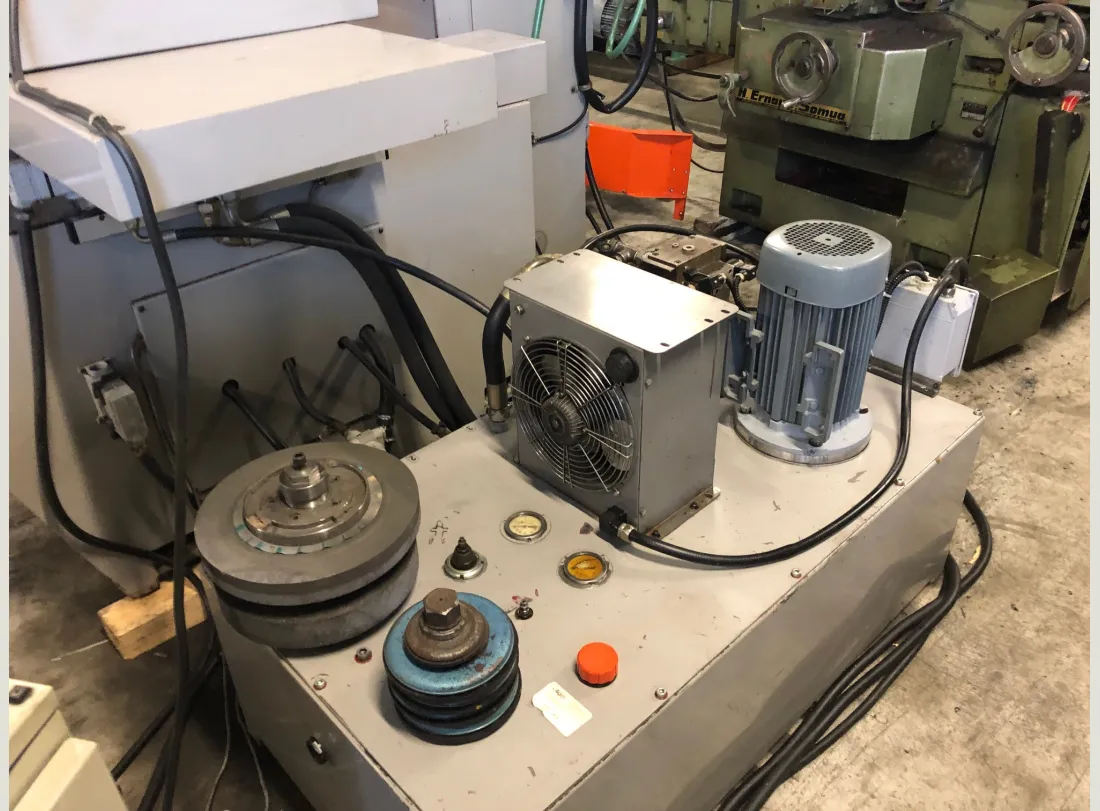

Hydraulic power :
4 HP
Grinding wheel diameter :
350 mm
Grinding wheel width :
50 mm
Grinding wheel bore :
76 mm
Working height :
1050 mm
Weight :
approx. 4500 kg
Surface Grinding machine LODI
