Mechanics › Lathes
Lathes

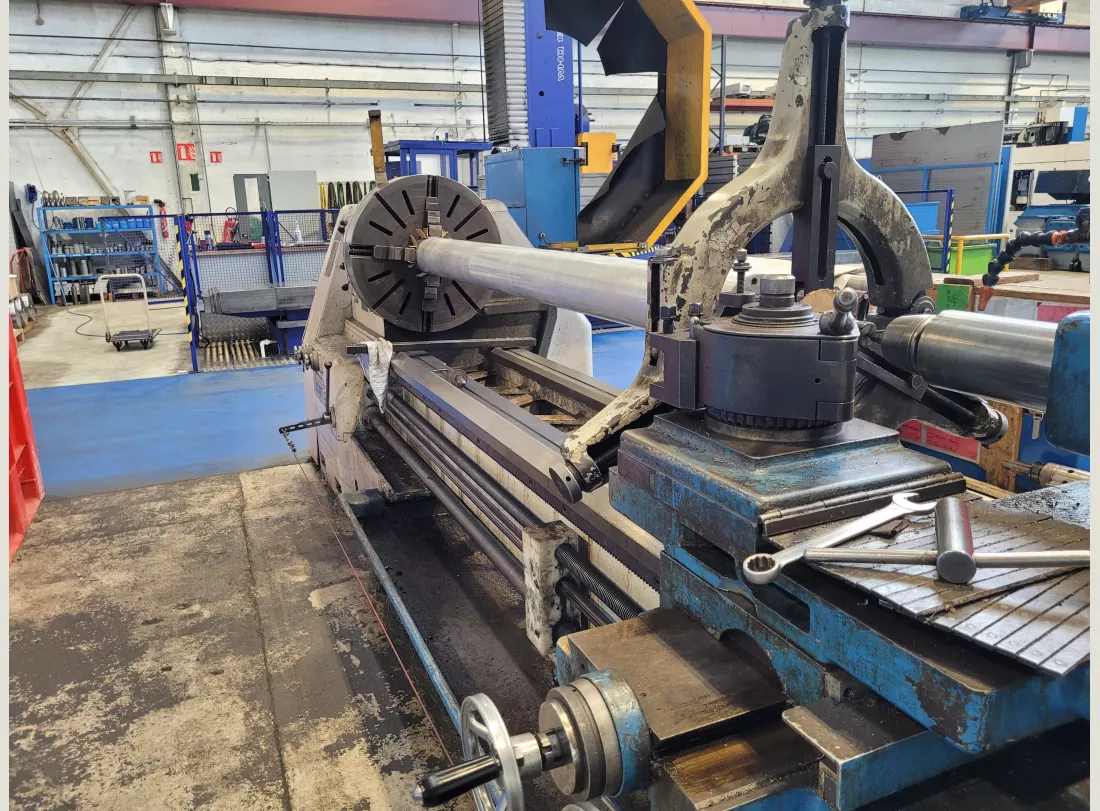

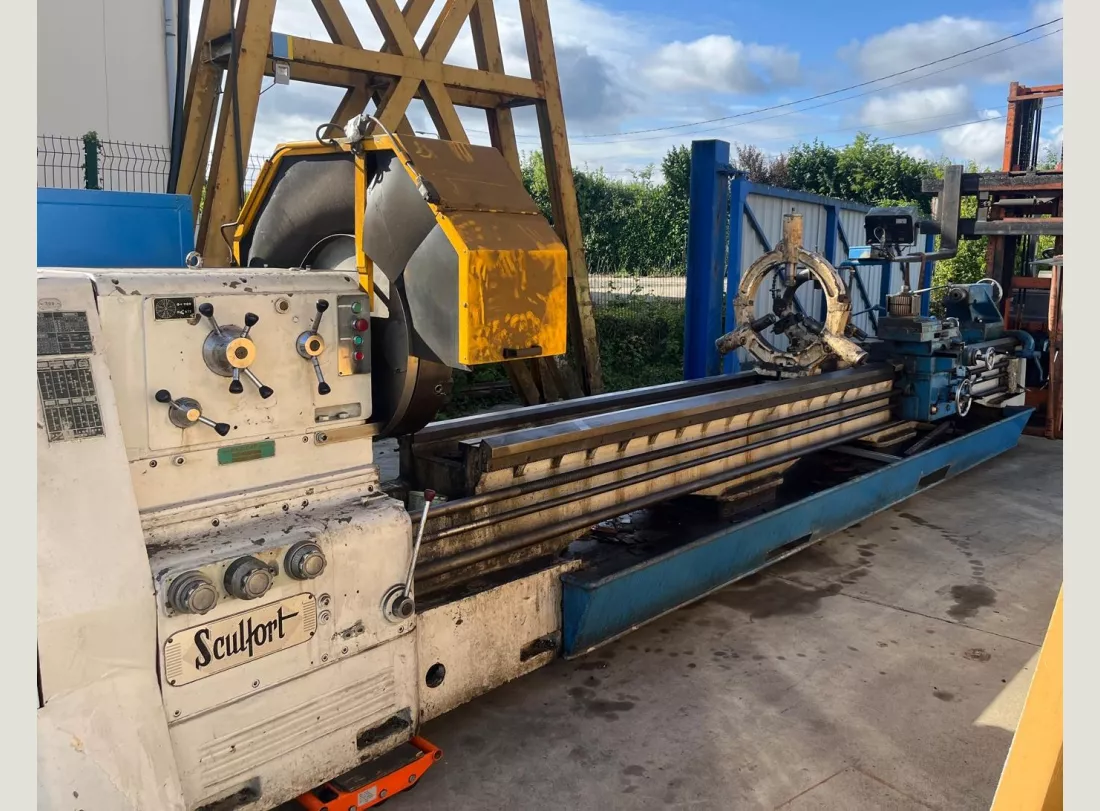

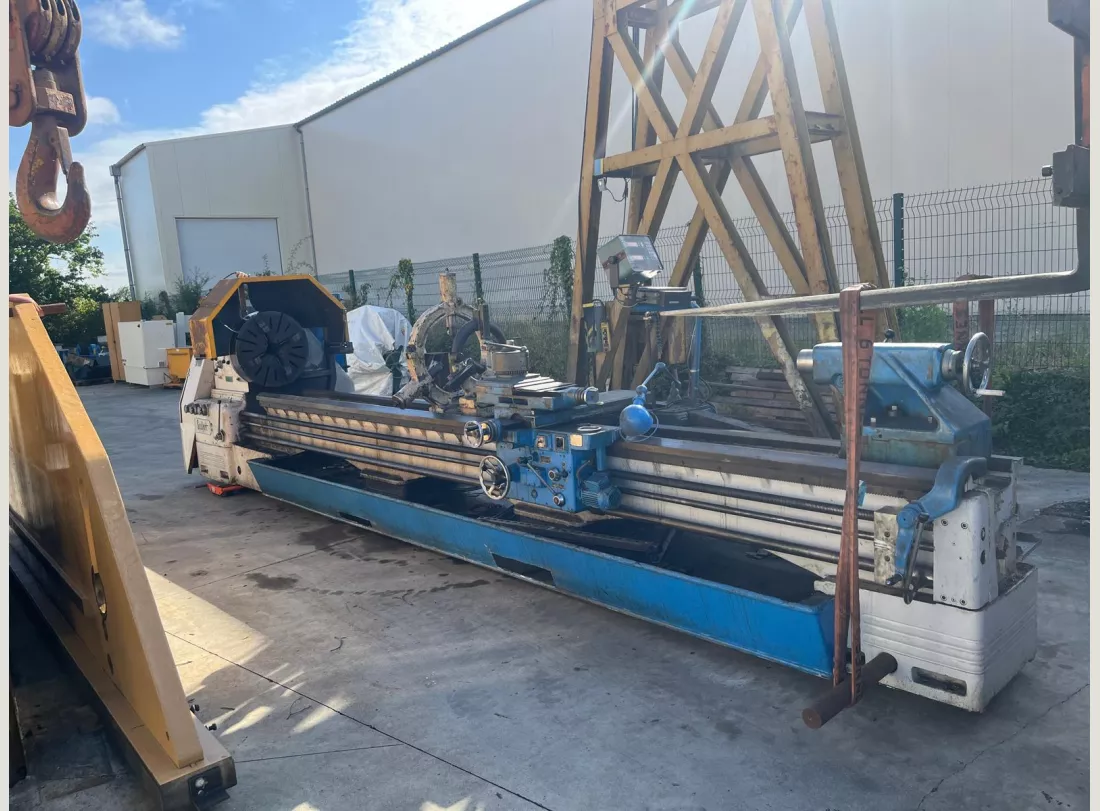

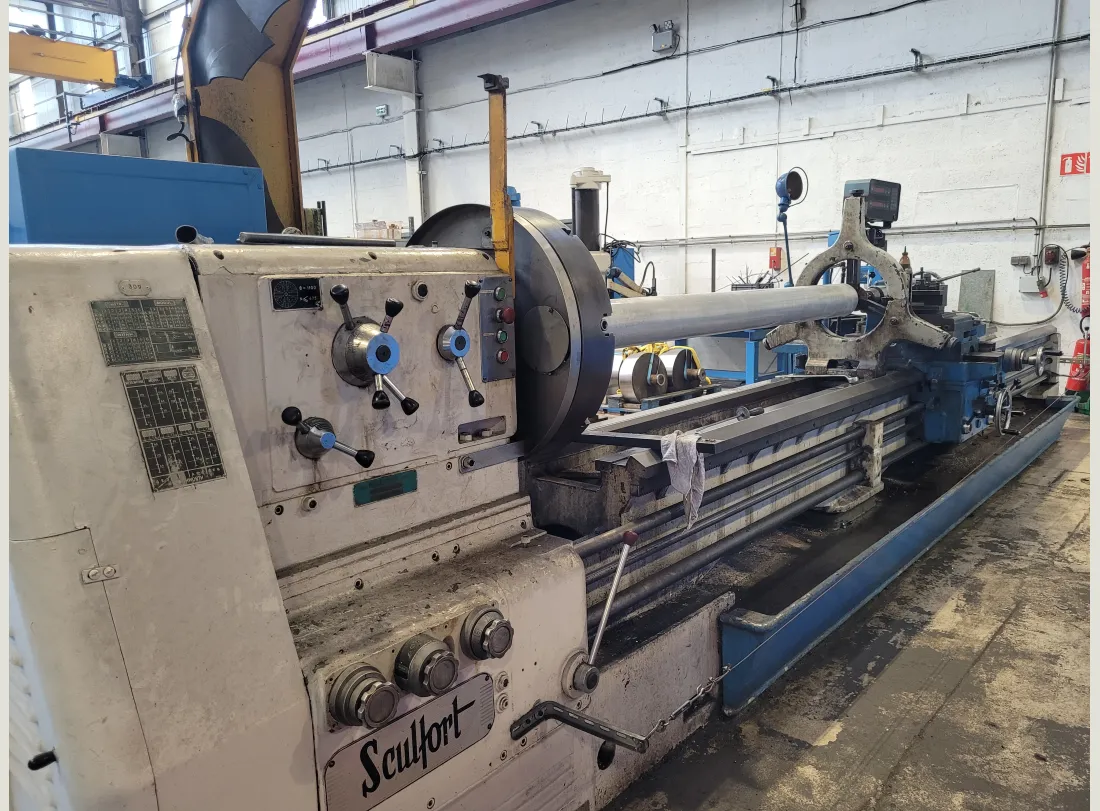

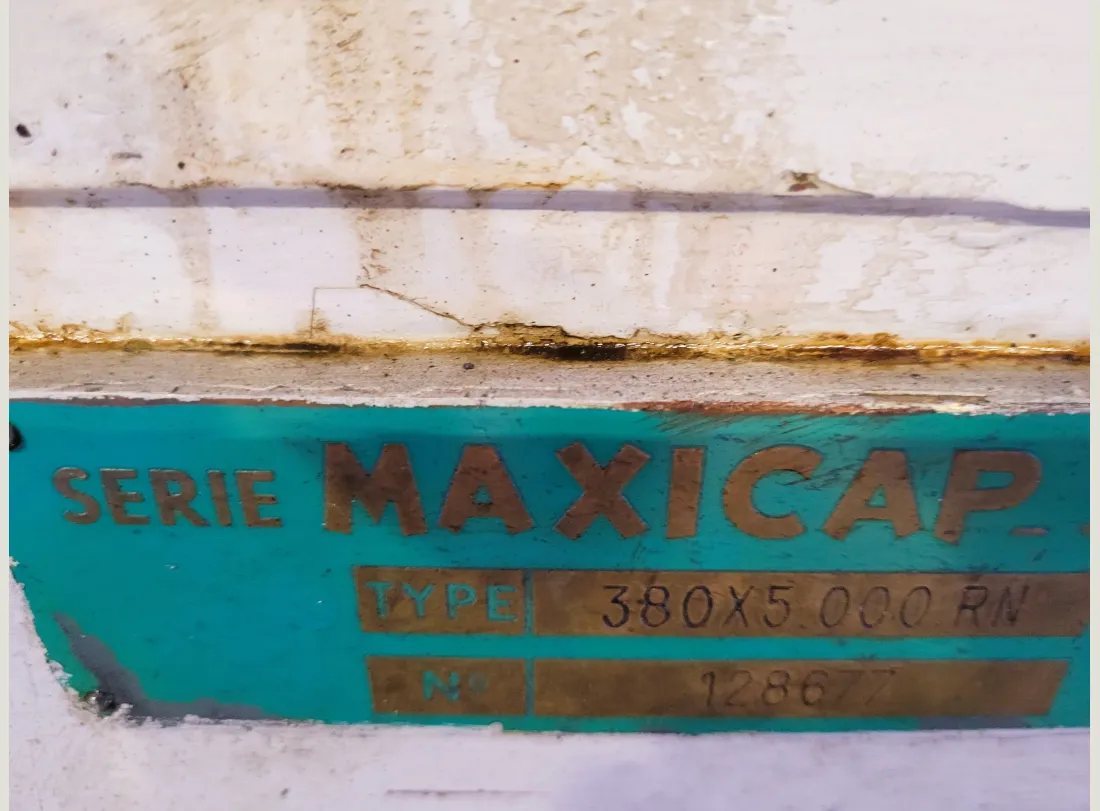

Lathe SCULFORT MAXICAP 380 x 5000 NR
(3849)
Distance between tip :
5000mm
Diameter allowed above the bed :
780mm
Diameter allowed above the trolley :
580mm
Diameter allowed above the cross slide :
580mm
Diameter allowed in the fractional :
1160mm
Total width of the fracture :
400mm
Width of the fracture in front of the hole tray :
225mm
Drilled spindle :
80mm
Spindle taper :
CM 5
Taper of the tailstock :
CM 5
Bench width :
575mm
Diameter from pin to collar :
110mm
Maximum passage through the fixed bezel :
380mm
Maximum cross carriage stroke :
600mm
Maximum travel of the swivel carriage :
200mm
Maximum travel of the tailstock sheath :
250mm
Engine power :
17 CV
Number of steps obtained
Metric :
90
Withwork :
84
Thread Range
Metric (mm) :
0.25 à 280
Withwork (Thumb Fillets) :
0.25 à 112
Extreme values of longitudinal advances (mm) :
0.025 at 11.2
Extreme values of transverse advances (mm) :
0.012 at 5.6
Approximate weight :
4700 kgs
Lathe SCULFORT MAXICAP 380 x 5000 NR
