The opportunities - Mechanics › Mortisers

Mortisers

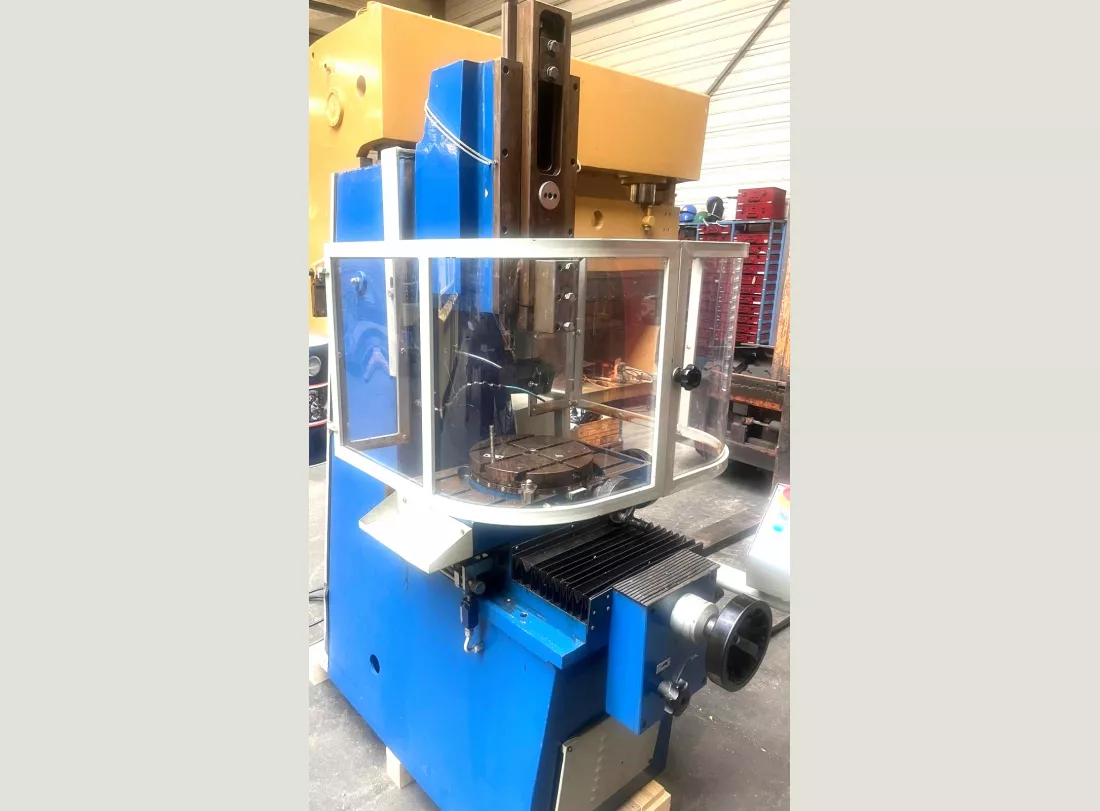

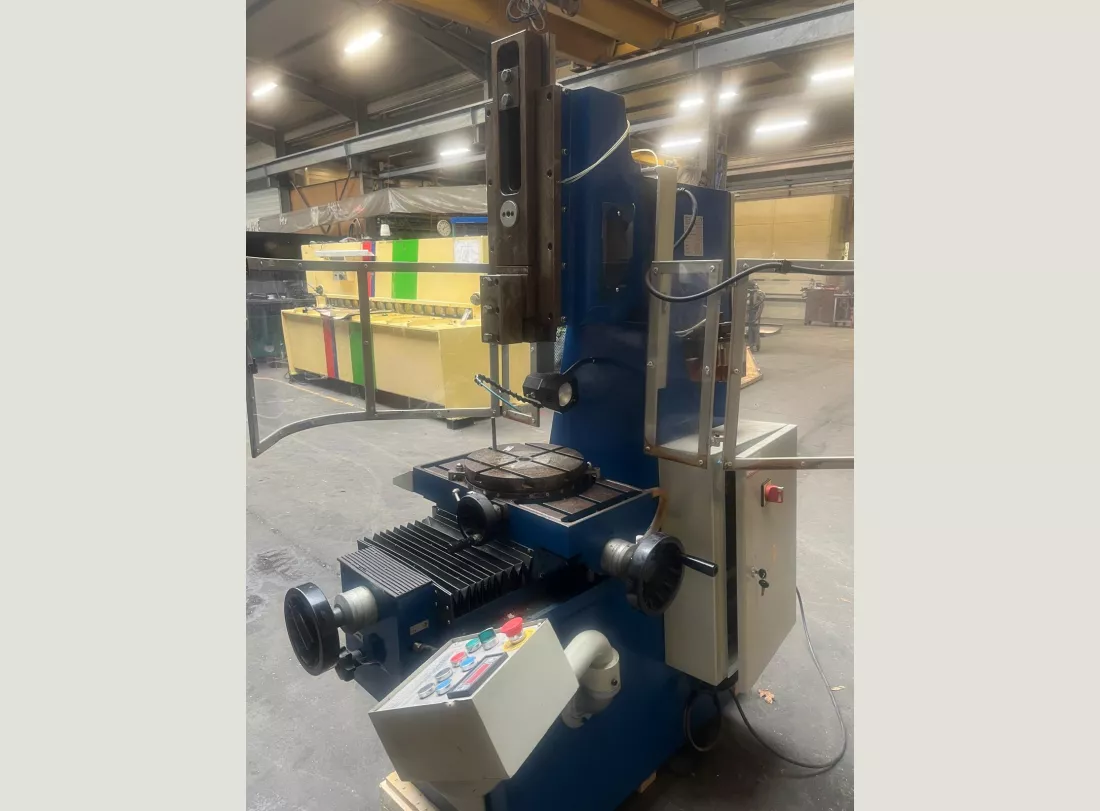

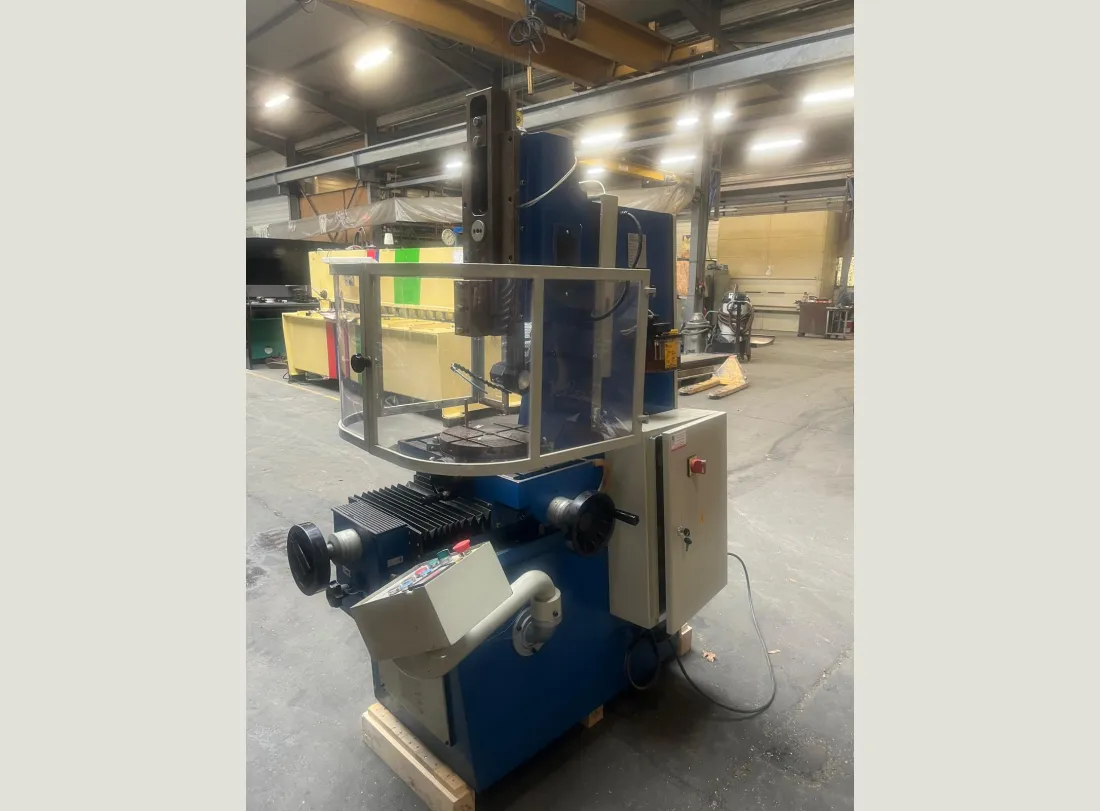

Mortiser S200TGI

(3894)

Tool travel 0 - 200 mm

Strokes per minute 17 - 60

Cylinder height adjustment 250mm

Head swivel angle ±45

Distance between head and table 390mm

Distance between column and tool holder 380mm

Turntable diameter 315mm

Number of fixed rotary table positions 24 (15°)

Longitudinal displacement of work table 250mm

Cross travel of work table 200mm

Main motor power kW (hp) 4 (5.5)

Net weight 1050kg

Overall dimensions (unpacked) LxWxH 840 x 1450 x 1850mm

Overall dimensions on wooden base LxWxH 1100 x 1500 x 2050mm

Mortiser S200TGI

Contact me (on that machine)
