Lathes

Lathe SCULFORT MAXICAP

(3661)

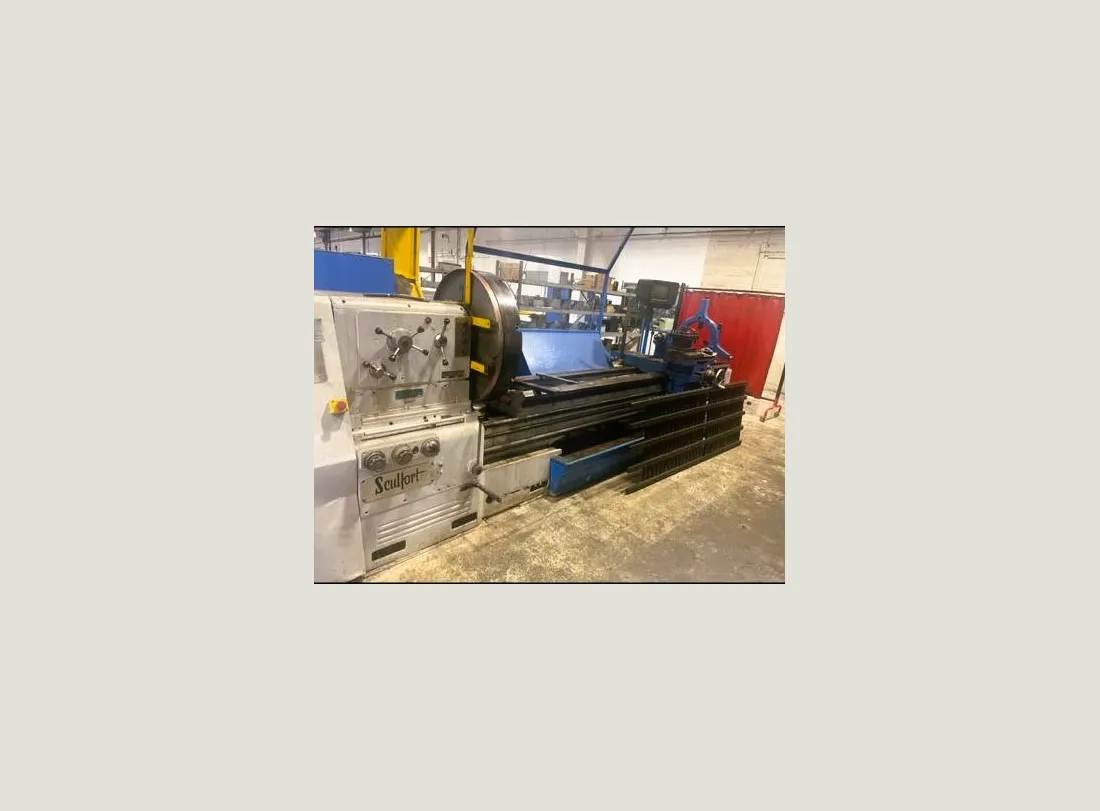

Lathe SCULFORT MAXICAP 1

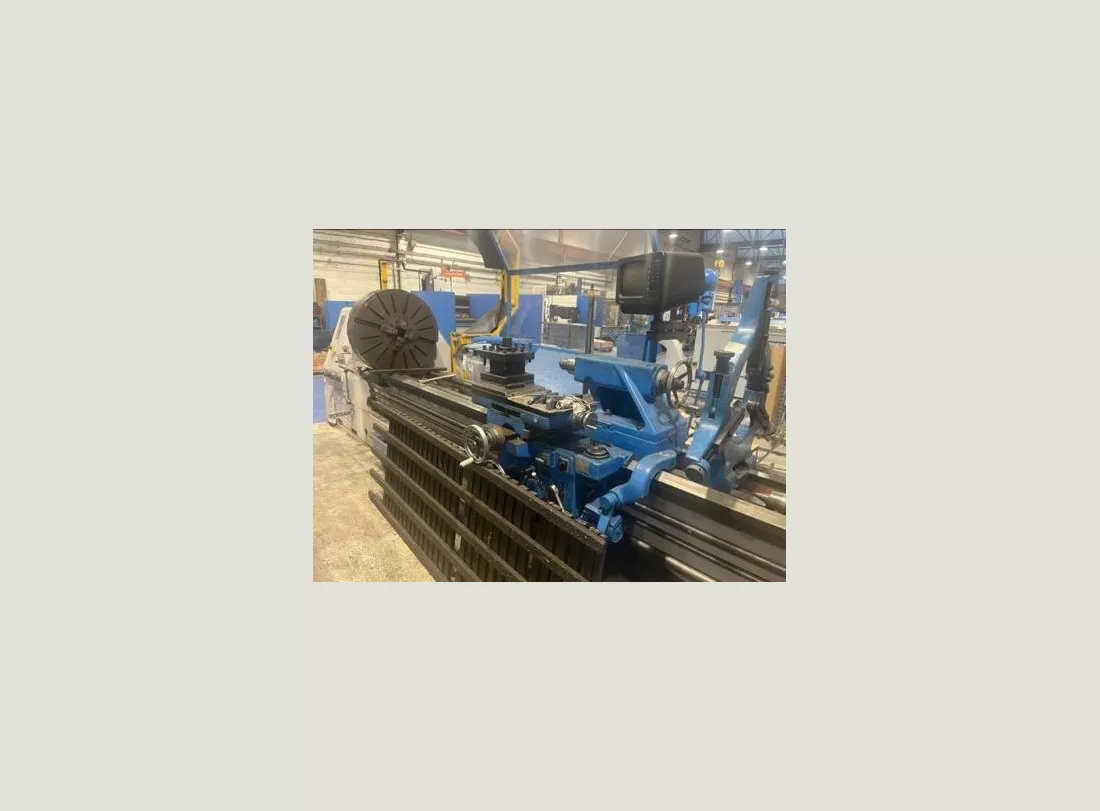

Lathe SCULFORT MAXICAP 2

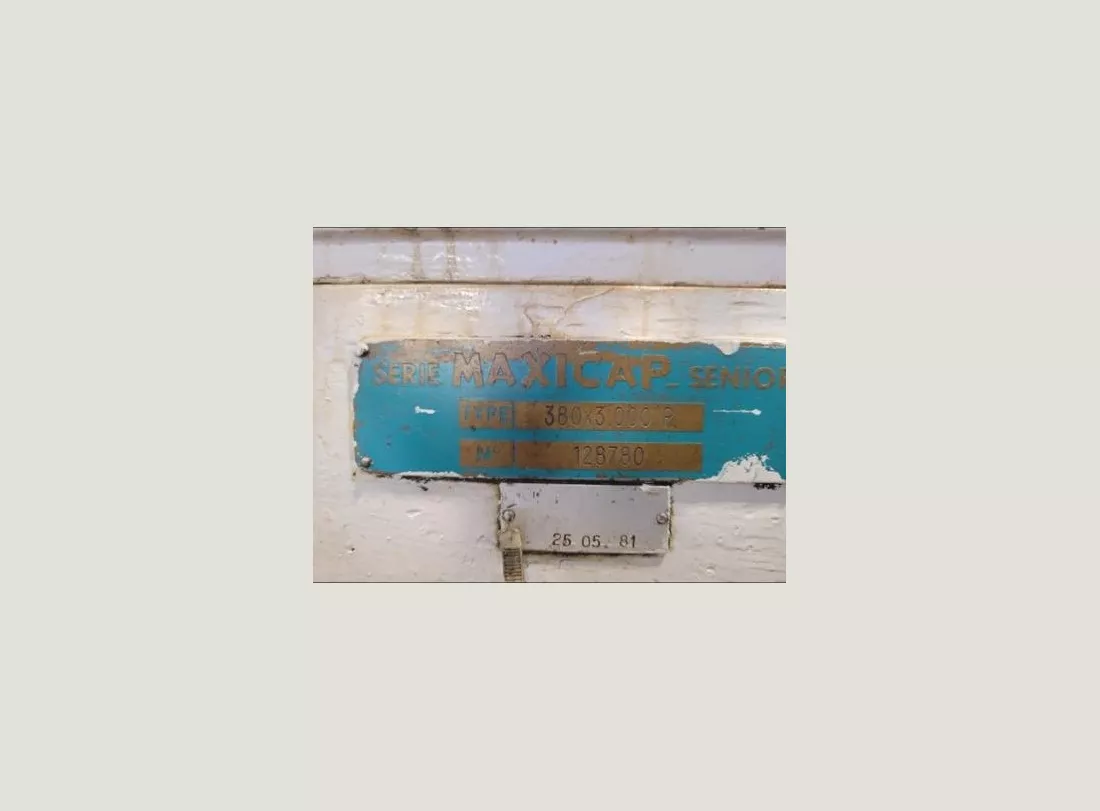

Lathe SCULFORT MAXICAP 3
Brand SCULFORT MAXICAP SENIOR
Type 380 x 3000 P
Peak height 380mm
Maximum diameter allowed above the bench
780 mm
Maximum diameter allowed above the transverse trolley 580 mm
Maximum diameter allowed above the guides of the straggler 780 mm
Maximum diameter to be trolley in the broken
1160 mm
Total width of the broken 400 mm
Bench width 575 mm
Brush bore 80 mm
Transverse trolley travel 600 mm
Travel of the small longitudinal trolley 200 mm
Counter sheath stroke 250 mm
Cone of the counter tip CM 6
24 front and rear spindle speeds 6 to 1280 rpm
54 transverse advances from 0.012 to 5.6 mn/tr
54 longitudinal advances from 0.025 to 11.2 mn/tr
90 metric pitch from 0.25 to 280 mm
84 steps Whitworth from 0.25 to 112 net per thumb
54 steps modules from 0.25 to 11.2
Engine power 13 hp
Approximate weight 5900 kg
Fixed bezel, bezel to follow, chucks 3 and 4 bits, square turret
Lathe SCULFORT MAXICAP
