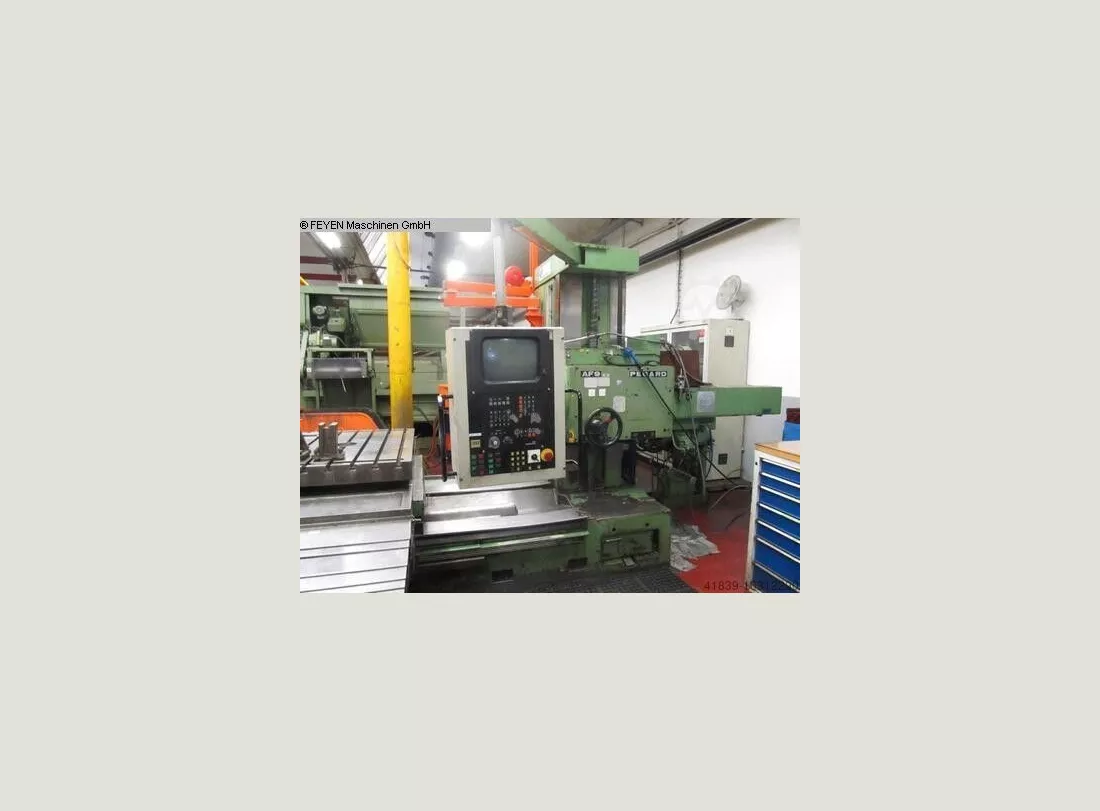

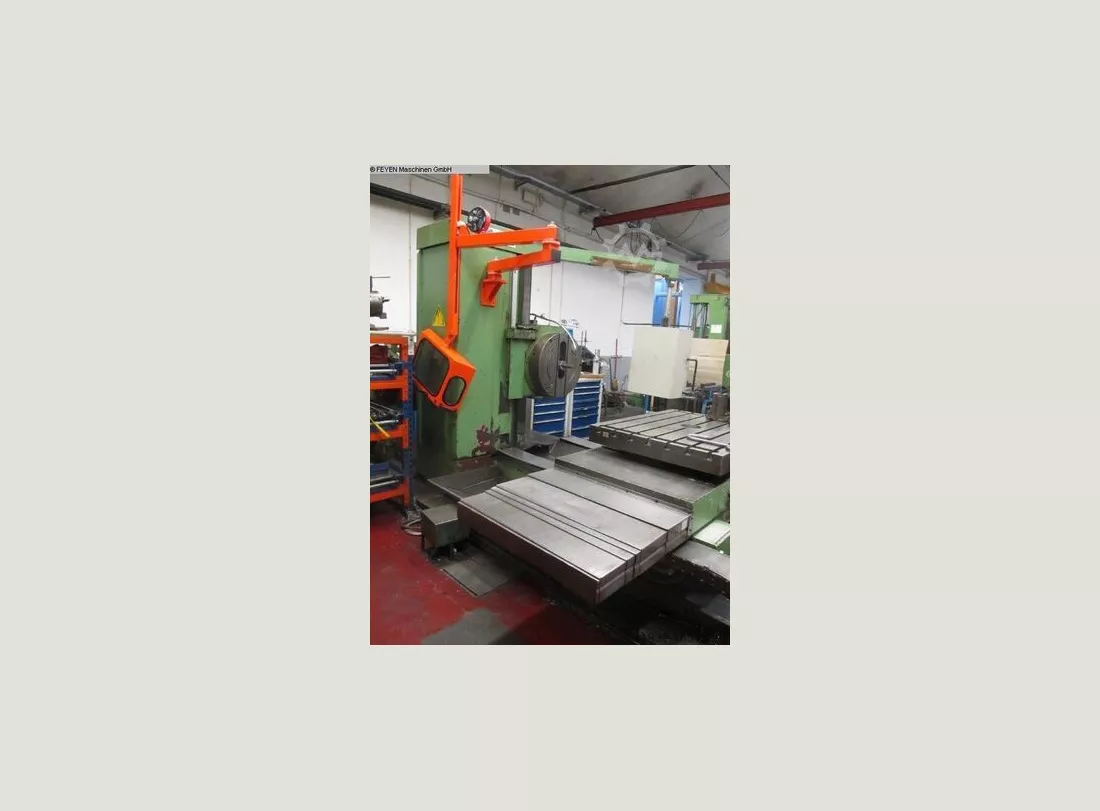

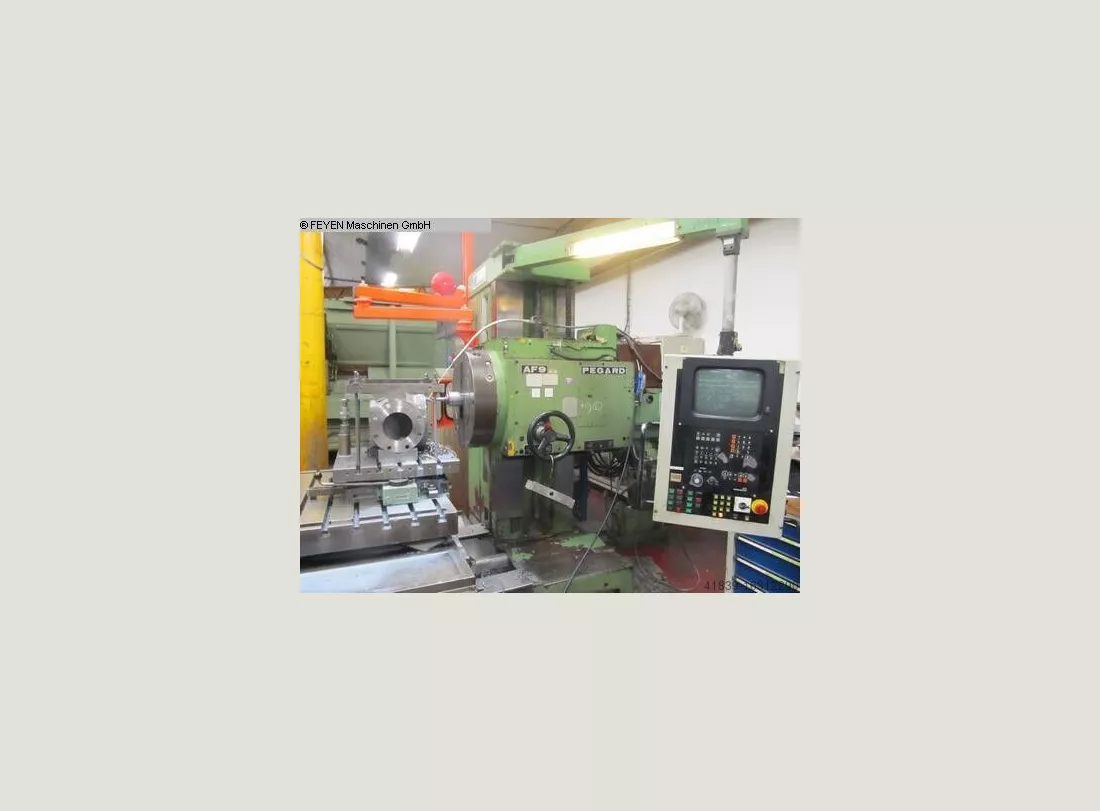

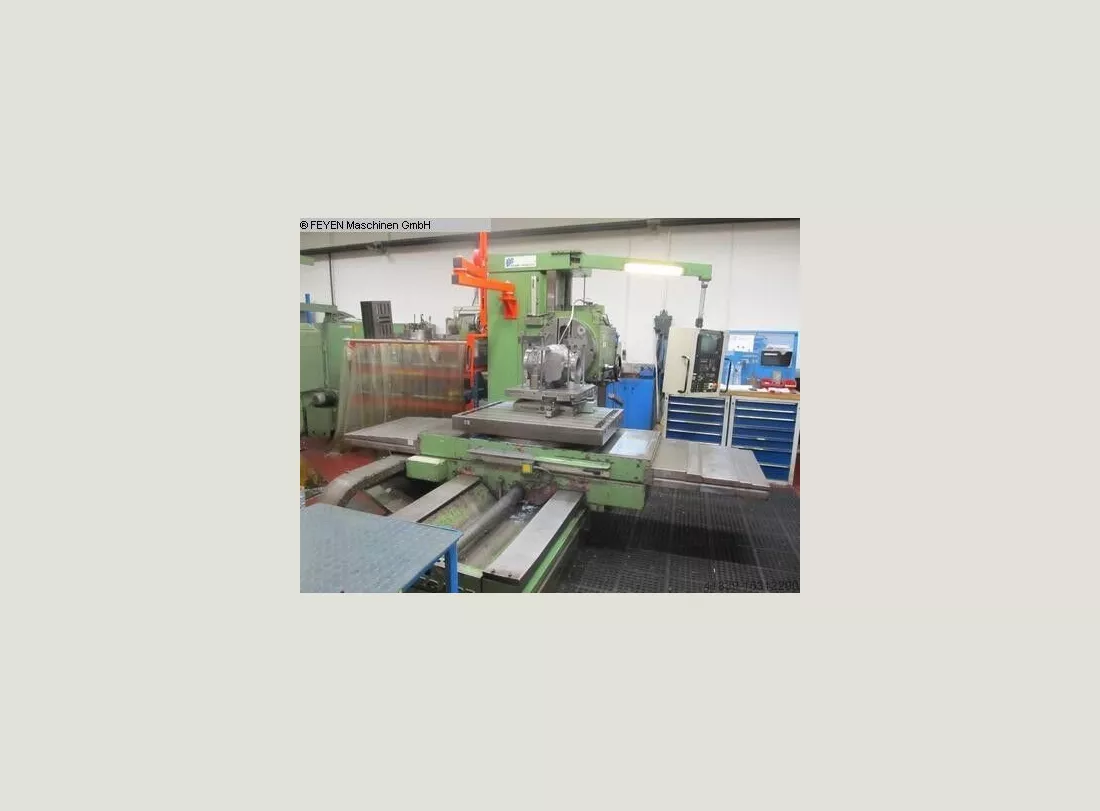

Boring Machine PEGARD AF9

(4052)

Brand PEGARD

Type AF9

Spindle diameter 90 mm

X-axis travel 900 mm

Y-axis travel 900 mm

Z-axis 1200 mm

W-axis 800 mm

Table clamping area 900 x 1200 mm

Rotation 360 degrees

Table load 6 T

Speed 25–1,400 rpm

Spindle mount ISO 40

Voltage 380 V / 50 Hz

Milling spindle drive 9.2 kW

Total power requirement 35 kVA

Weight 10 tonnes

Overall dimensions 4,500 x 2,800 x 2,500 mm

Front slide Ø 600 mm,

Travel range 150 mm

Boring Machine PEGARD AF9

Contact me (on that machine)
