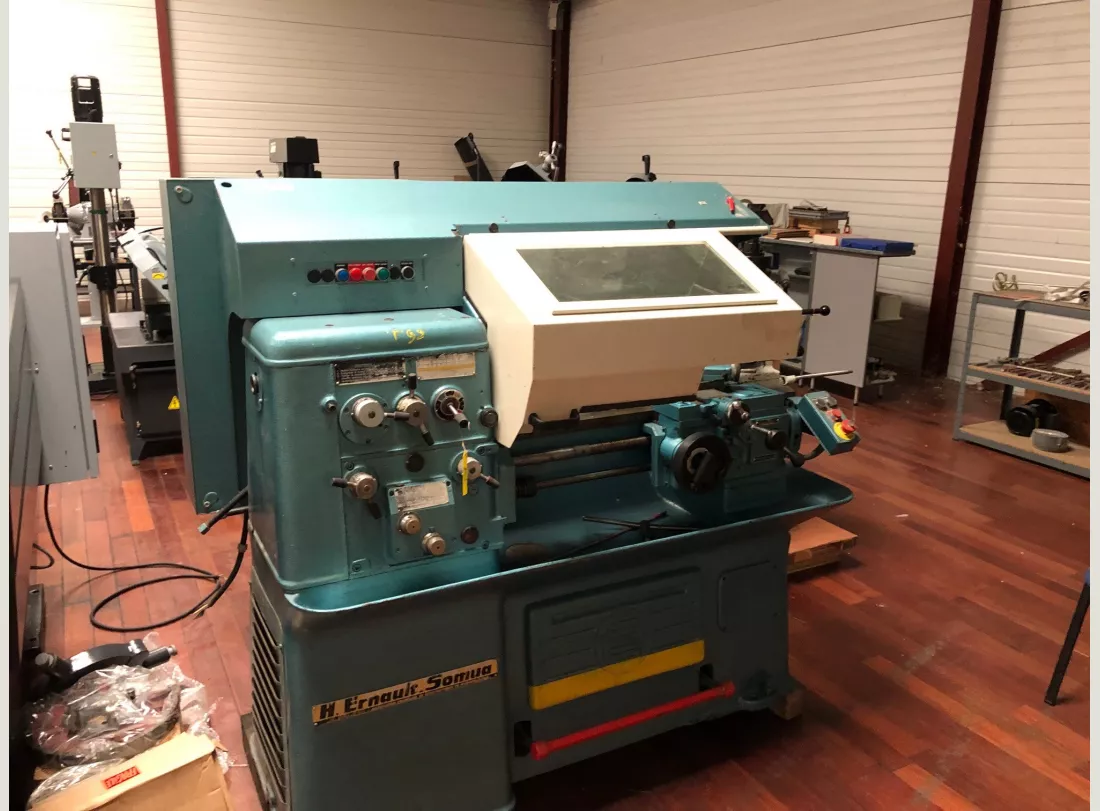

Lathe ERNAULT AC280

(3120)

Brand ERNAULT

Type AC280

Tip height 140 mm

Distance between points 500 mm

Maximum diameter in front of the spindle nose 300 mm on 200 mm long

Maximum diameter above the bed 280 mm

Maximum diameter above the slide Extended : 145 mm

Short : 180 mm

18 Spindle speeds from 50 to 2500 rpm

Spindle bore 25 mm

Morse taper N°4

Longitudinal feeds from 0.05 to 0.7 mm

Transverse feeds from 0.025 to 0.35 mm

Tool carriage travel 110 mm

Tool section 18 mm x 18 mm

Tailstock sleeve diameter 45 mm

Tailstock taper Morse n°3

Bed width 215 mm

Overall dimensions : L x W x H 1580 x 635 x 1190

Weight 1 050 Kg
