Mechanics › Lathes
Lathes

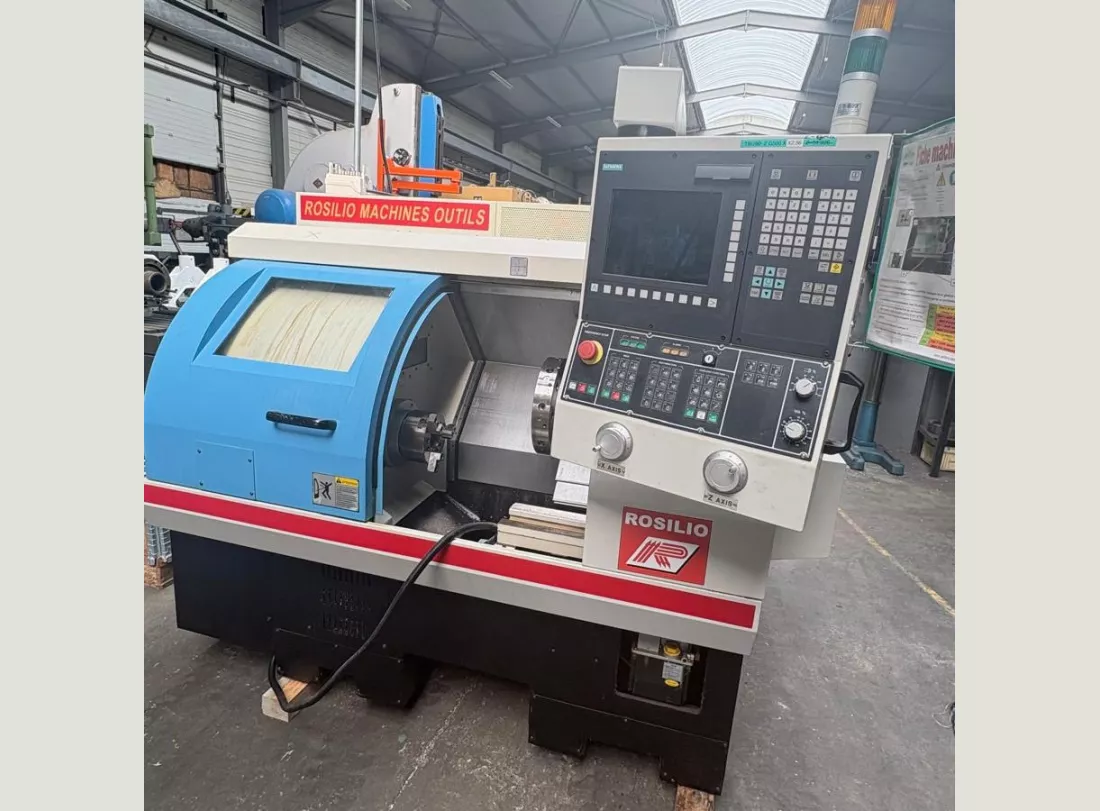

LATHE ROSILIO TBI 280 CNC
(4038)
LATHE ROSILIO TBI 280 CNC
Machining capabilities
• Diameter over bed :
280 mm
• Maximum machinable diameter :
from 220 to 250 mm depending on version
• Maximum machinable length (Z-axis) :
350 mm
• X-axis travel :
145 mm (of which 20 mm below zero)
Spindle
• Maximum speed :
6000 rpm
• Spindle taper :
A2 5
• Motor power :
5.5 / 7.5 kW
• Spindle bore diameter :
42 mm
• Chuck :
hydraulic
Turret
• 8-position VDI 30 intelligent turret
• Lubrication at each position

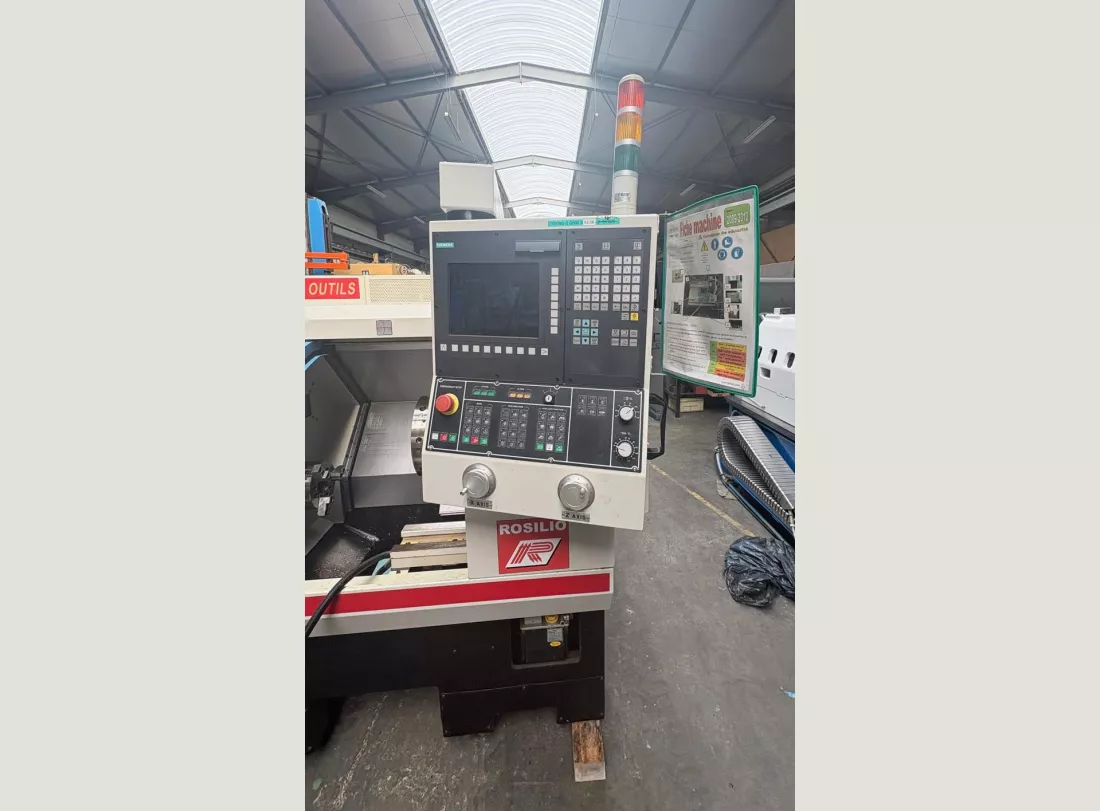

Available numerical controls
• Siemens 802D SL
General data
• Rapid traverse :
o X-axis :
10 to 15 m/min
o Z-axis :
20 to 30 m/min
Tailstock :
o CM4, Ø70 mm sleeve, 65 mm stroke, 400 mm total stroke
Dimensions :
2000 × 1450 × 1800 mm
Weight :
2200 kg
Approximate specifications
LATHE ROSILIO TBI 280 CNC
