Milling machines

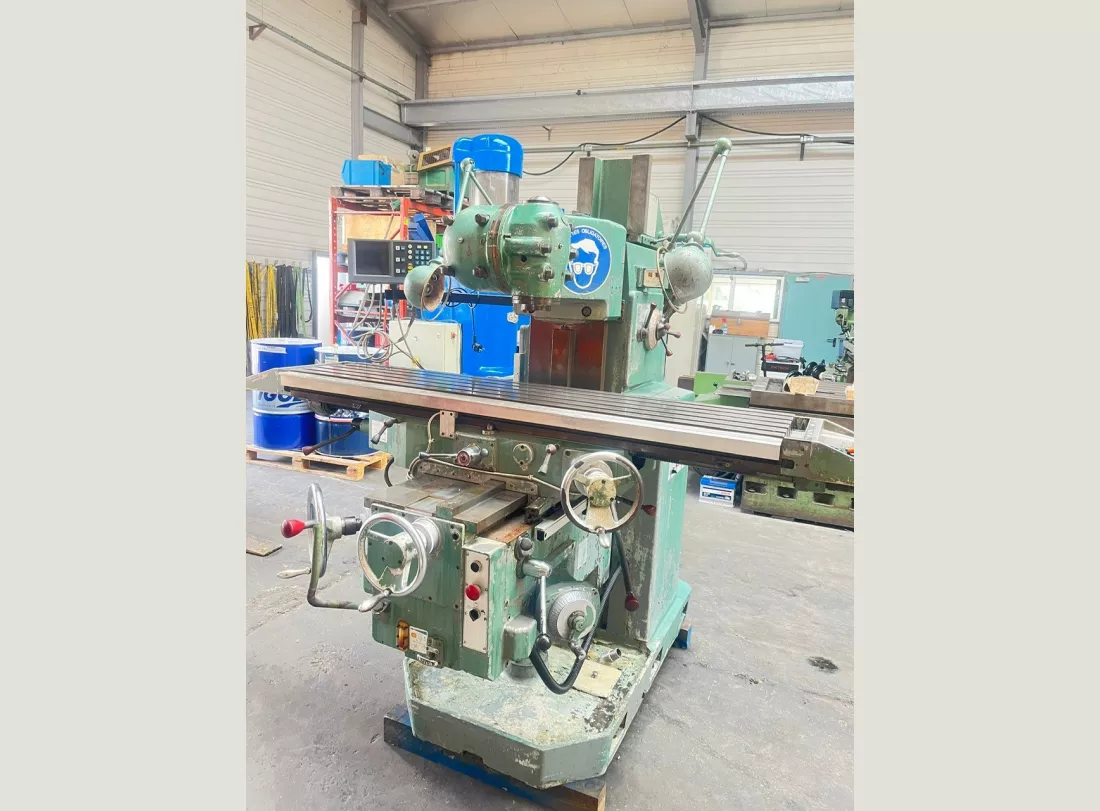

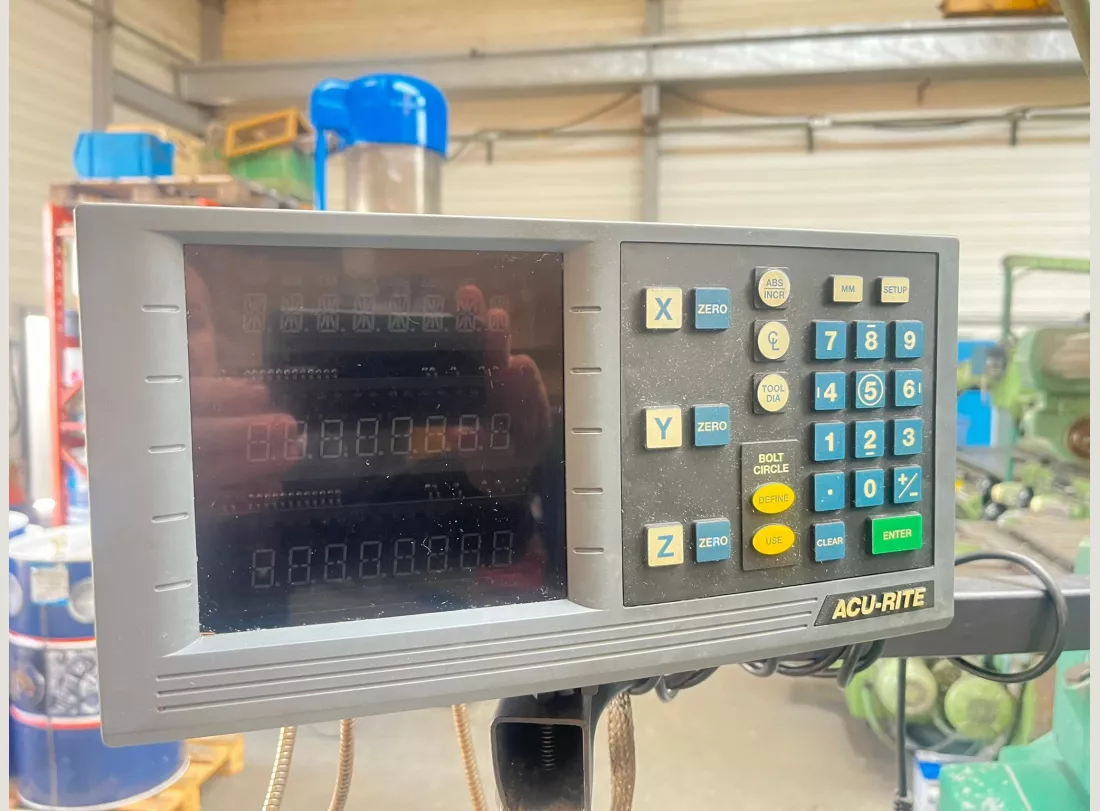

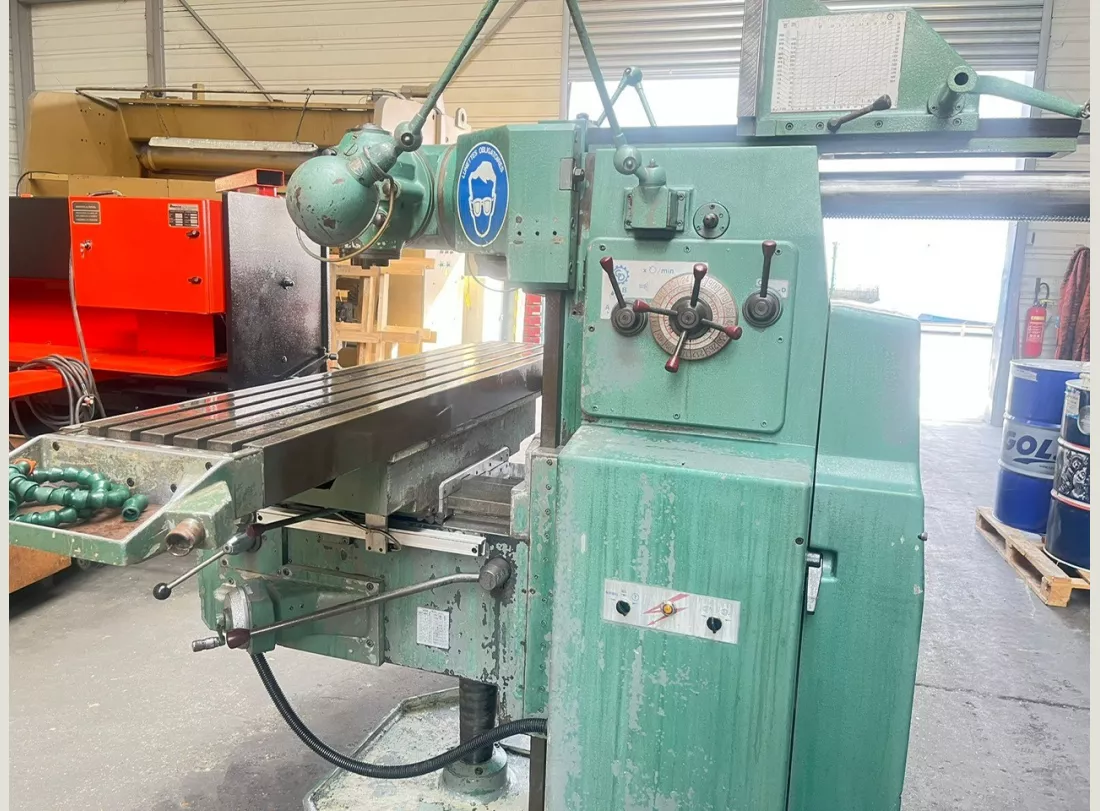

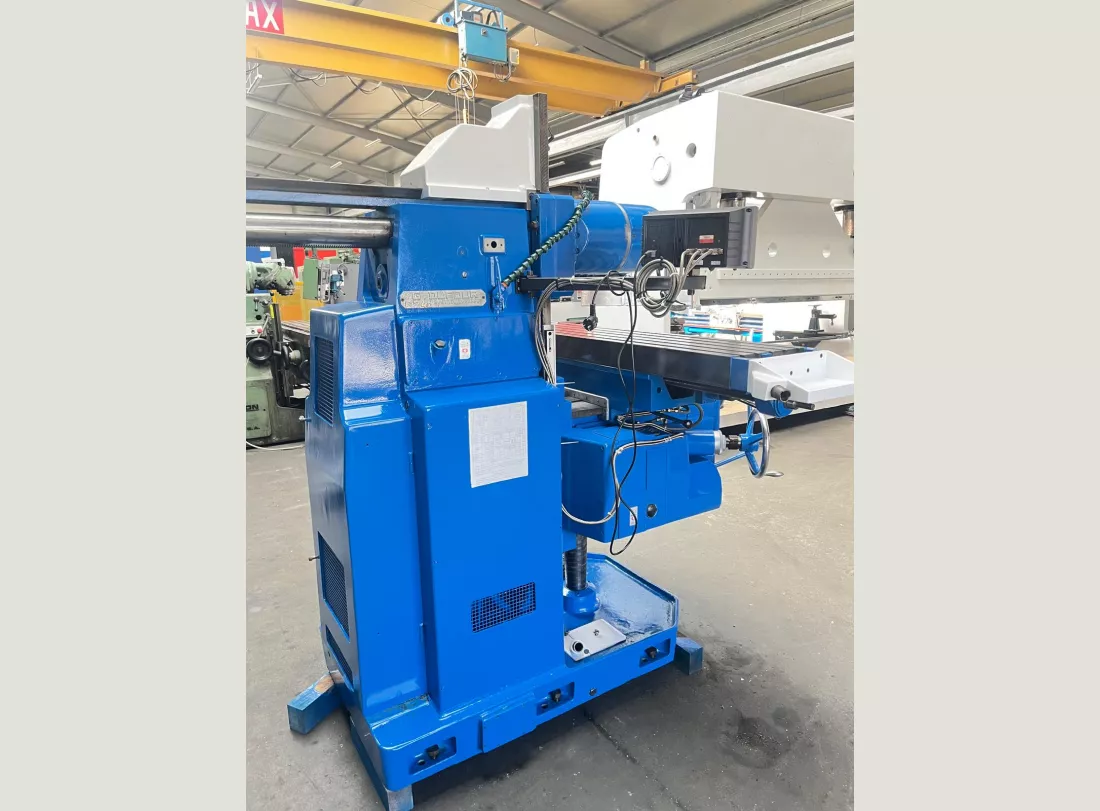

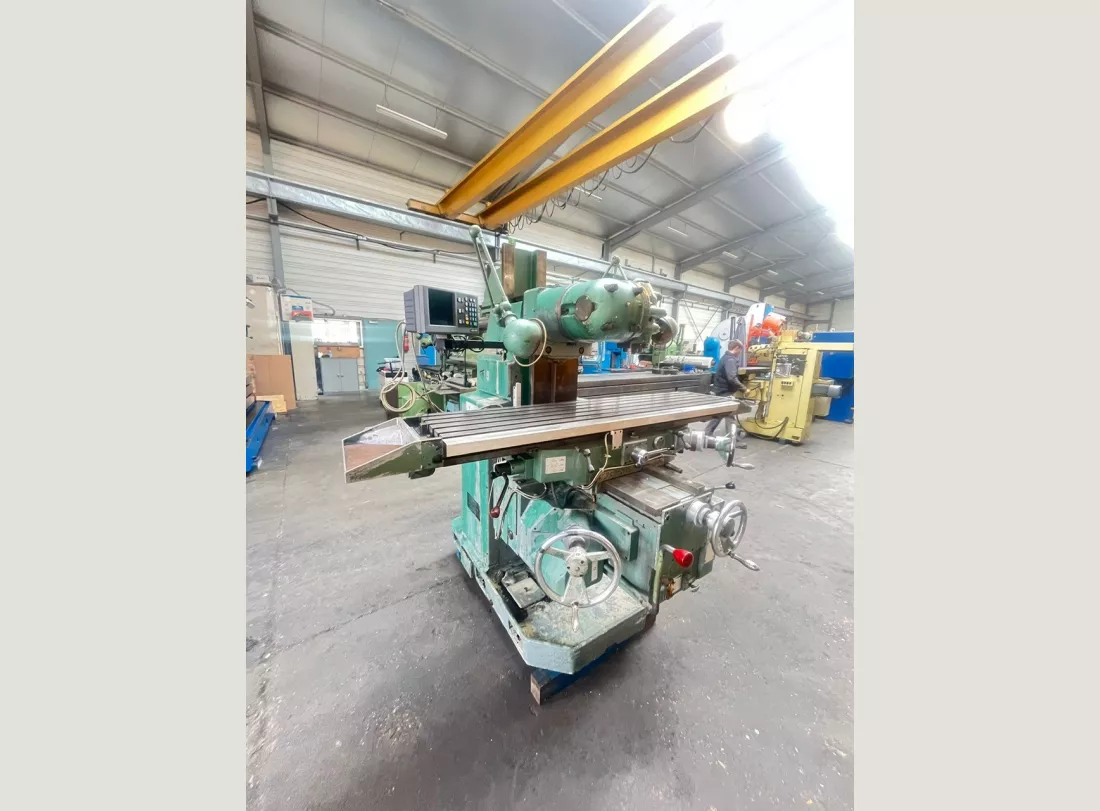

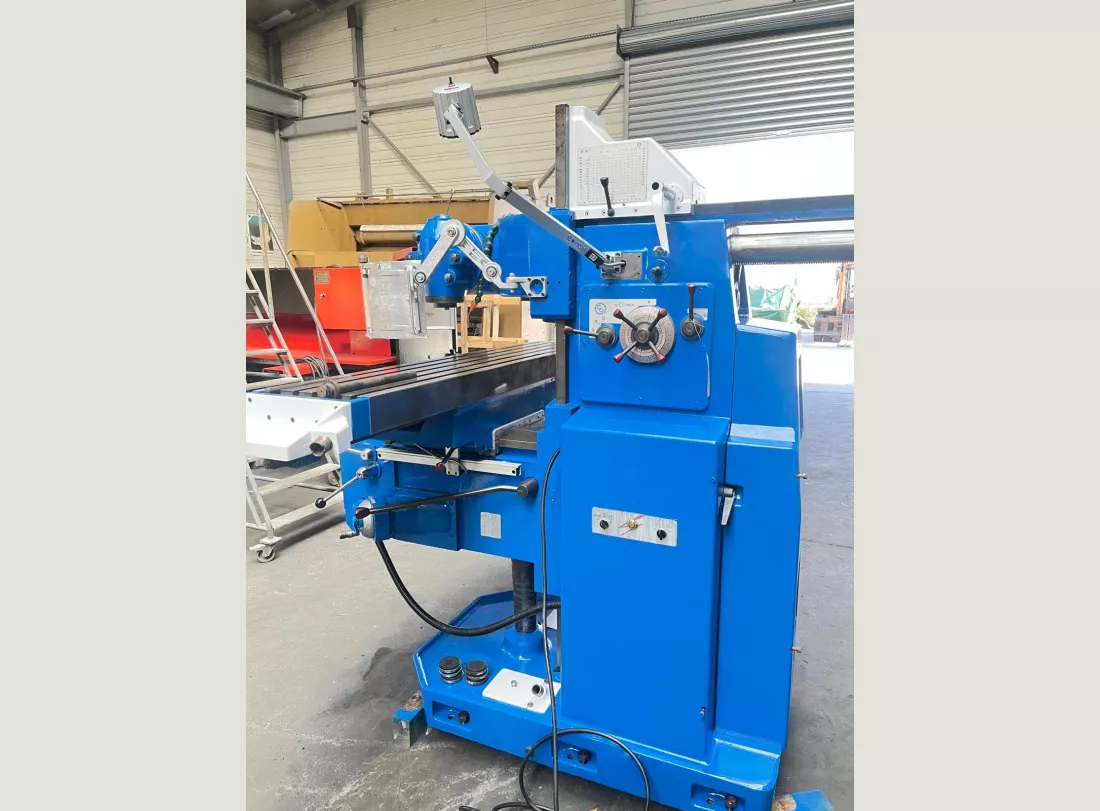

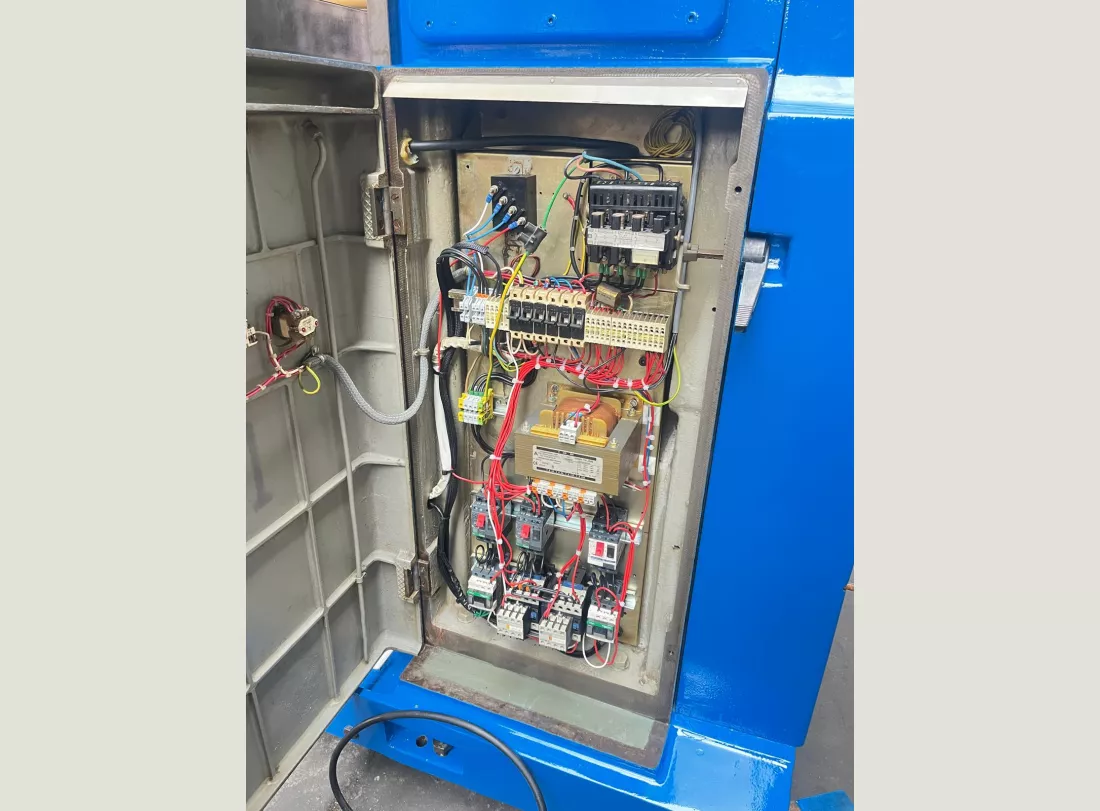

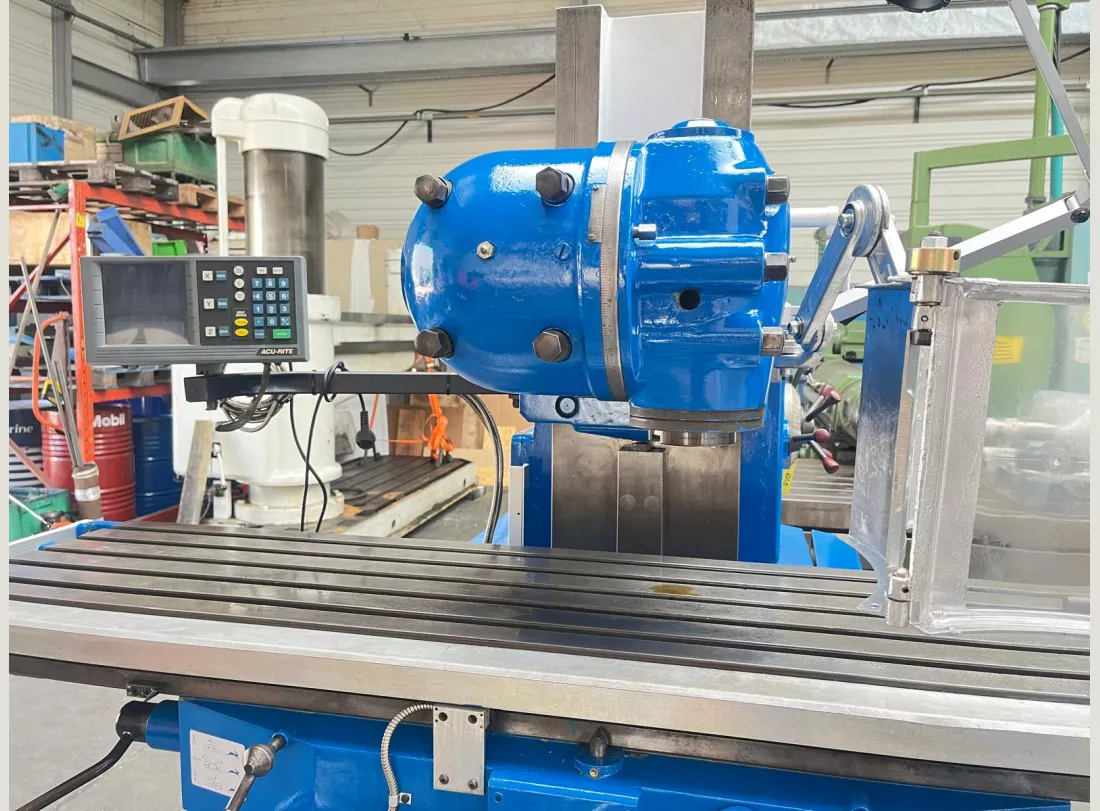

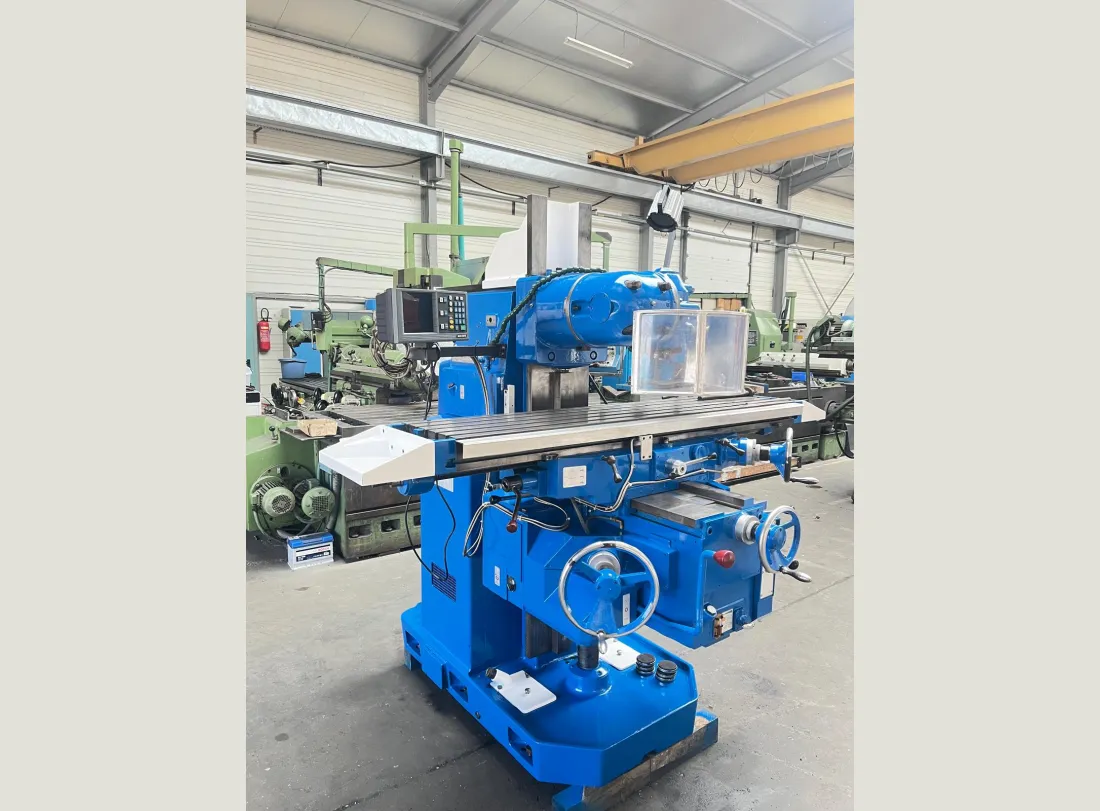

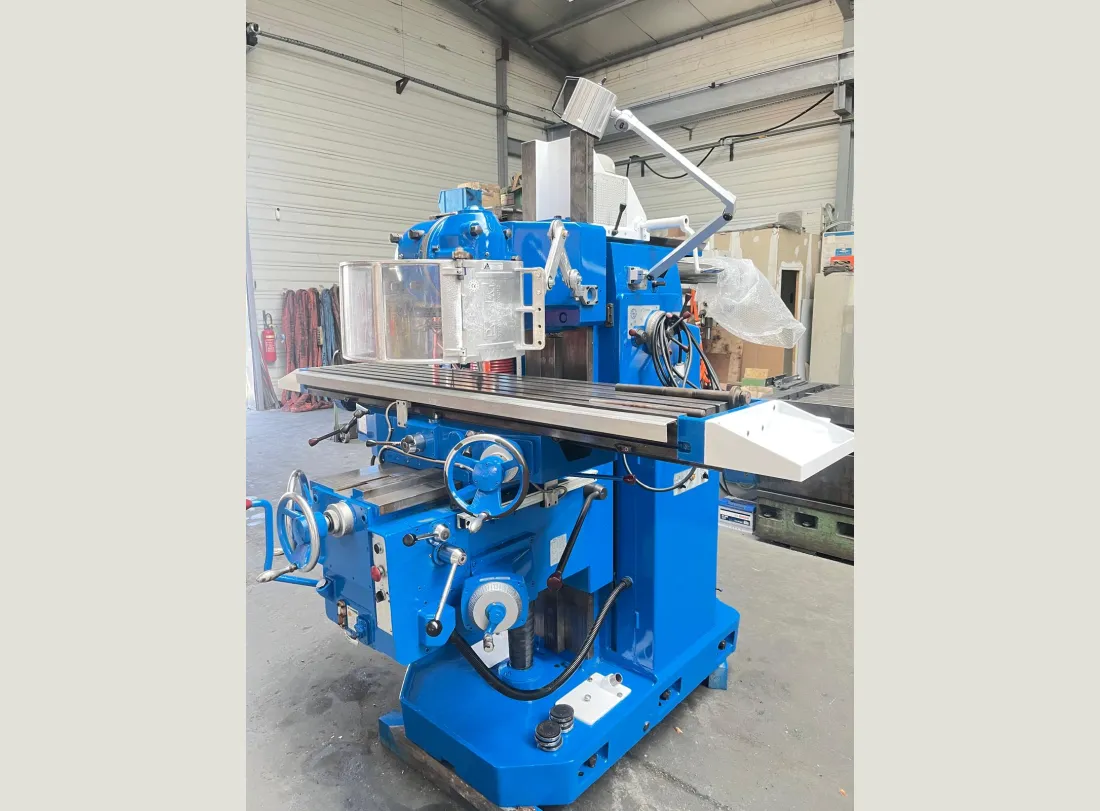

Milling Machine DUFOUR 624D

(4020)

Table Surface 1 600 x 345

5 T-grooves of 18 mm

Spindle Cone 5 A 40

Cross longitudinal 1 100 mm

Cross Stroke 400 mm

Vertical Stroke 546 mm

Maximum passage between horizontal spindle axis and table 552 mm

Passage between the head spindle pin and the frame 410 mm

Available height under the heads 530 mm

16 spindle speeds 24 to 1,180 rpm

Longitudinal and transverse advances 10 to 825 mm/min

Fast Movement 2.8mm/min

Spindle Motor 7.4 Kw

Advance Engine 2 Kw

Watering by electric pump 0.16 Ch

Dimensions : L x W x H 2 120 x 2 105 x 2 050

Approximate weight 3 750 Kg

Milling Machine DUFOUR 624D

Contact me (on that machine)
